7/0 Johnson Pocket Door Frame for 2x4 stud wall

Roll over above image to zoom in

Click to open expanded view


Code:	JHN-153070


Price:	$133.20
Quantity (Each):	* * *
Product Total:	$133.20

In/Out of Stock:	Made To Order
Production Lead Time:	In Stock & ships in 1-3 business days

This product is currently unavailable for purchase.

DescriptionReviewsAlso in Pocket DoorLine Drawing

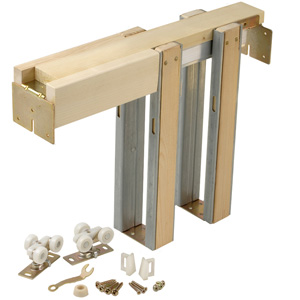

Johnson Hardware 7/0 Pocket Door Frame.

Part# 153070

Technical Ratings:
Grade: Commercial Grade ANSI Certified
Application: Interior Commercial / Residential
Max Door Thickness: 1-3/4" [44mm]
Max Door Width: 60" [1524mm]
Max Door Height: 108" [2743mm]
Wall Structure Thickness: 3-1/2" [90mm]
Weight Capacity:
1120 Hanger - 125lbs. [57kg] Per Door

Manufacturing Specifications:
Frame Header: Select solid spruce
Split Studs: Select solid spruce, galvanized steel wrapped

Track: Aluminum extrusion, mill grade finish
Steel Components: 12-14 gauge, zinc trivalent plated
Wheels: Nylon encapsulated sealed ball bearing
Packaging: Rigid cardboard box, reinforced ends
Country of Origin: USA

Be the first to submit a review on this product!

Review and Rate this Item

Line Drawing (PDF)
